Newstripe EcoLiner Plus Battery Powered Field Striper

EcoLiner™ Plus Battery Powered Field Striper

The EcoLiner™ Plus Battery Powered Field Striper is the smarter way to mark professional-quality athletic field lines without the hassle. Featuring a safe, no-pressure spray system, adjustable line widths from 2 to 6 inches, and flat-free tires built for uneven turf, this machine is engineered to save you time and effort on every job. An onboard clean water reservoir makes cleanup nearly instant, and the quick-release spray gun with 12-foot hose lets you tackle stencils with ease, making this striper as versatile as it is reliable. Backed by all-welded steel construction and a 24-month warranty, the EcoLiner™ Plus is built to deliver years of trouble-free performance. Order yours today and take the hard work out of field marking.

Key Features

• Easy Setup and Color Changes: Simply place a 5-gallon pail of premixed paint on the machine and you are ready to go. Changing colors is fast and easy thanks to the operator-friendly design.
• Safe, No-Pressure Operation: No pressurized tanks means no need to release pressure when adding paint or cleaning, reducing the risk of operator injury.

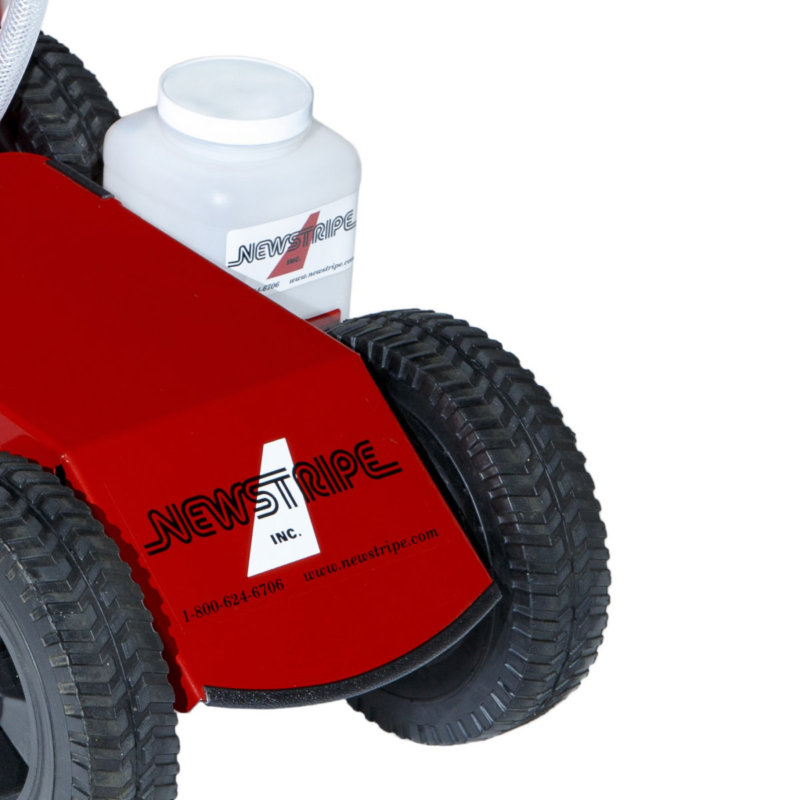

• Instant Onboard Cleanup: The built-in clean water reservoir lets you flush the spray system immediately after use, with no extra buckets or containers needed.
• Adjustable Line Width for Greater Flexibility: Mark high-quality lines the first time with a fully adjustable spray nozzle ranging from 2 to 6 inches wide, cutting down on touch-ups and repainting.

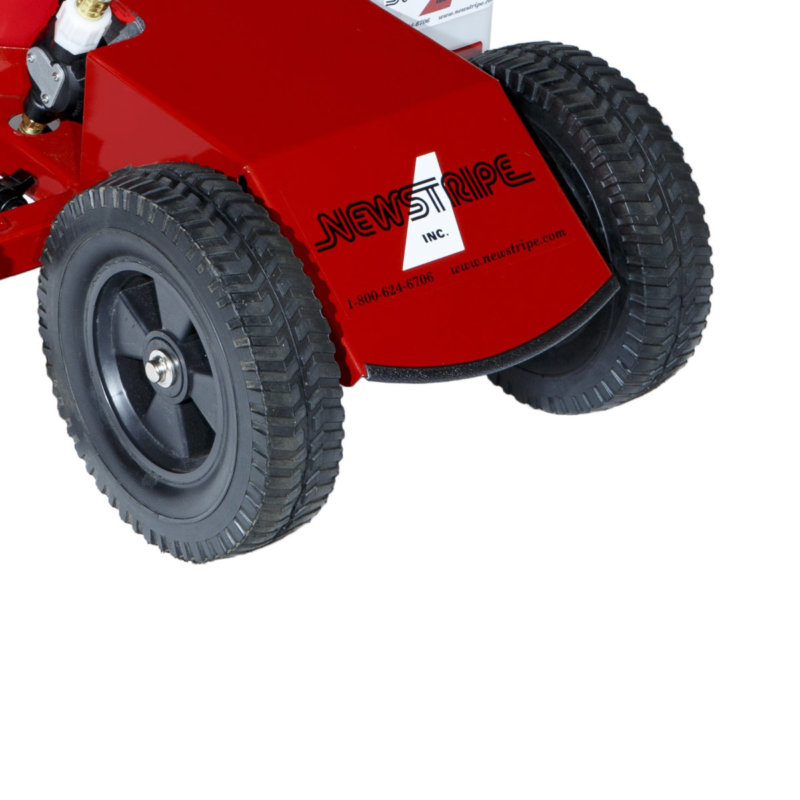

• Flat-Free Tires for Tough Terrain: Knobby, flat-free tires handle the demands of uneven turf with ease and will never go flat during a job.

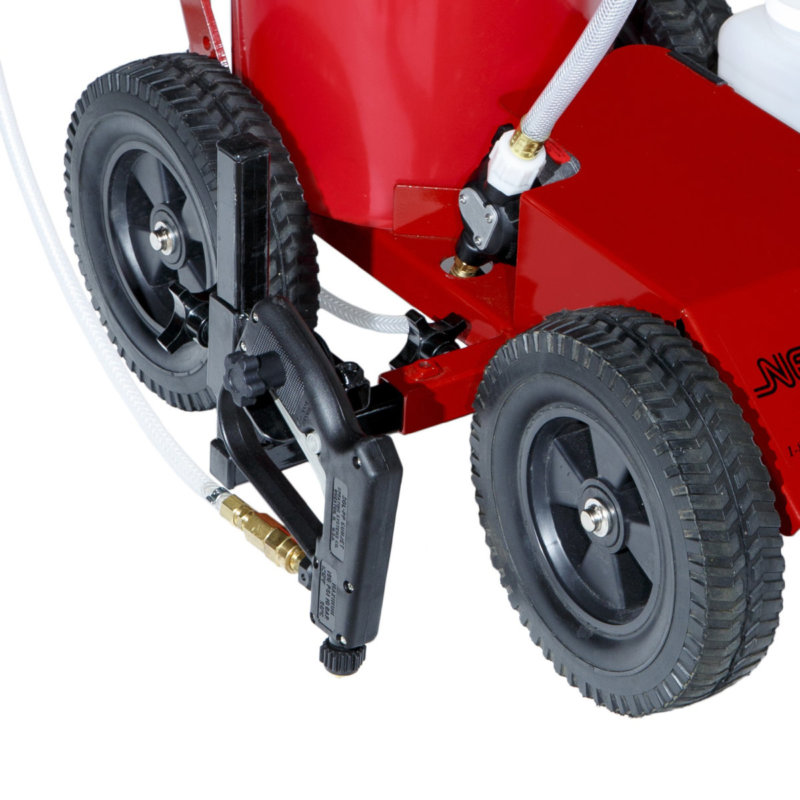

• Quick-Charge Battery and Versatile Spray Gun: Includes a 120V quick-charge battery charger for fast turnaround, plus a quick-release spray gun with a 12-foot hose for easy stencil painting. (Battery not included.)
• Clog-Free Performance and Durable Construction: A large mesh intake filter, inline filter, and check valve prevent clogs and drips, while all-welded steel construction ensures long-lasting, reliable use backed by a 24-month warranty.

Manuals

• EcoLiner Plus Product Sheet (04/26)
• Paint-to-Striper Recommendations Flyer (11/25)

What's Included

• Heavy Duty Detachable Spray Gun with 12ft Hose
• 1-Gallon Cleaning Tank

Application

• Intended Use: Athletic Field Striping

Spray System

• Spray Pump: Low Pressure (1.8 gpm)
• Paint Capacity: 5 Gallon

Power & Propulsion

• Propulsion: Walk Behind
• Engine: Electric, 12V 18ah AGM Battery

Wheels

• Wheel Size: 10" Flat Free

Dimensions & Weight

• Product Dimensions: 46" L x 21.25" W x 37" H
• Shipping Dimensions: 39" L x 22" W x 12" H
• Shipping Weight: 63 lbs

Manuals

• Ecoliner Plus Manual (12/25)
• EcoLiner Battery Recommendations (01/26)

Most products require some assembly, but clear instructions are included with every order. Customers typically assemble their equipment without any issues. If you need help, our team can connect you with manufacturer tech support for guidance.
